インクジェットプリンタのドライバ調整によるインスタントインクジェット回路の導電性向上と両面インスタントインクジェット回路の実装 MODIFIED INKJET PRINTER DRIVER TO IMPROVE INSTANT INKJET CIRCUIT CONDUCTIVITY BY OVERPRINTING – IMPLEMENT OF DOUBLE SIDED INSTANT INKJET CIRCUIT.

2014年10月27日

Tung_fig2

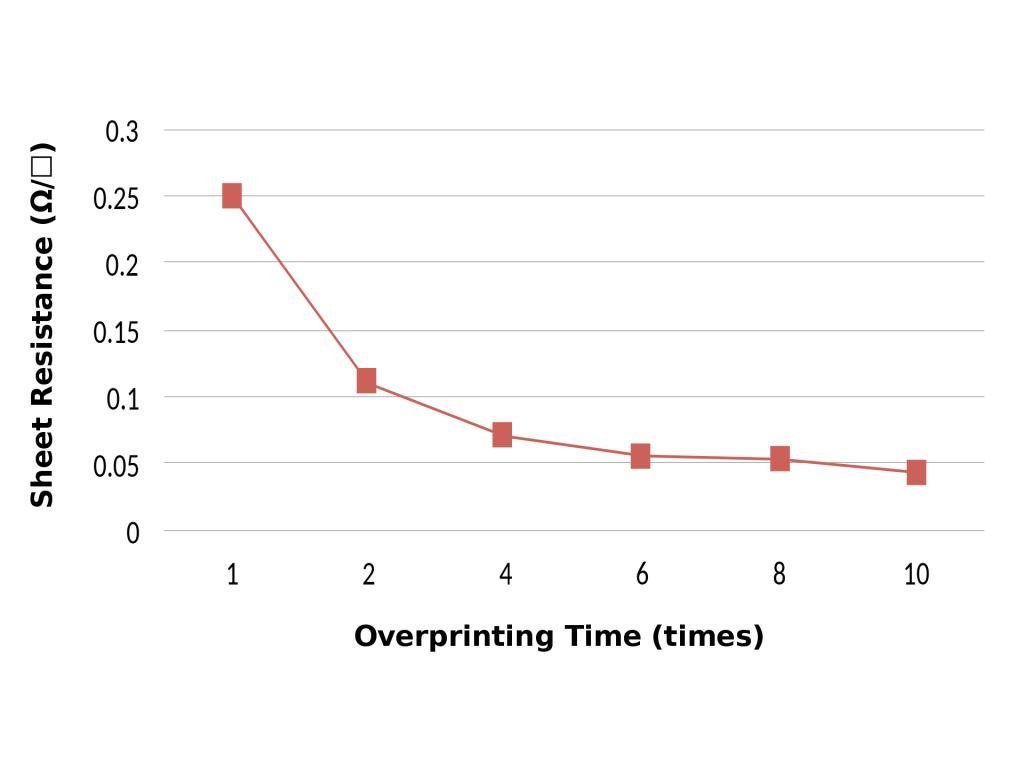

印刷を複数回行うことによる導電性の向上
Conductivity improvement using overprint



Tung_fig31

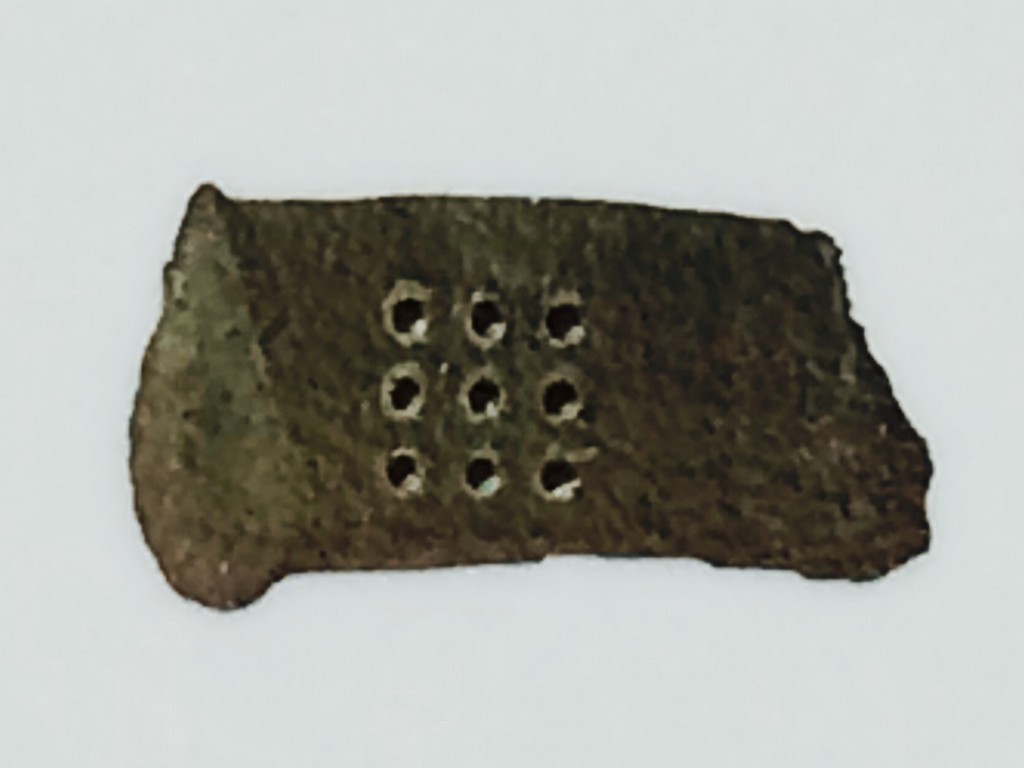

レーザーカッターを用いて空けられたビア
Via hole on paper using laser cutter



銀粒子インクを使った導電パターンの形成は,ラピッドプロトタイピングには十分な性能を持つものの,膜厚が極めて薄いため,形成パターンの電気抵抗が高いという問題がありました.無線電力伝送や通信に用いるのアンテナ素子を作る際,抵抗が高いとロスが大きくなってしまいます.そこで,印刷されたパターンの導電性を改善するためにインクジェットプリンタのドライバを改良し,印刷の塗り回数を制御することで,同一パターンの印刷を繰り返すことに成功しました.このオーバープリントで,印刷されたパターンの表面抵抗率を0.19Ω/□から0.043Ω/□へ,約5分の1に下げることが可能になりました.
また,上記のオーバープリント以外に,多層基板の実装手法についても検討しています.まずは,両面電子回路を実装すべく,紙上に導電性のビアを形成する方法を開発しています.

本研究はMicrosoft Research CORE 10プログラムの一環として、Microsoft Research Asiaと協働で実施されました。

Instant inkjet circuit – using silver nanoparticle ink to print conductive pattern – has been known as a method to rapidly fabricate electronic circuit on flexible substrates. Although it can be used to make many types of circuit, the effect of resistance still remains if we fabricate conductive pattern like antenna for Wireless Power Transmission. In order to improve conductivity of printed pattern, we tweaked the inkjet printer driver to control the printing process so that we can overprint a pattern time to time in a same sheet of paper. By overprinting, the sheet resistance has decreased from 0.19 ohm per square (Ω/□) to 0.043Ω/□.
Currently, we are also working on prototyping of multi-layered circuit on paper. Starting with double sided circuit, we develop a process to fabricate via hole to connect 2 silver printed circuits on both sides of a paper. This via hole can be made by laser cutter or some special designed needles. In the future, we will implement a method to fabricate multi-layered circuit using silver nanoparticle ink and inkjet printer.

This project was funded by Microsoft Research CORE 10 program. A part of the research results were obtained at Microsoft Research Asia.

【参考文献】~9/8
T. Duc et al., “Tweaking Printer Driver for Improved Conductivity in Instant Inkjet Circuits,” IPSJ SIG Technical Report (Ubiquitous Computing System), 2014-UBI-42(2), pp.1-4, 2014.
